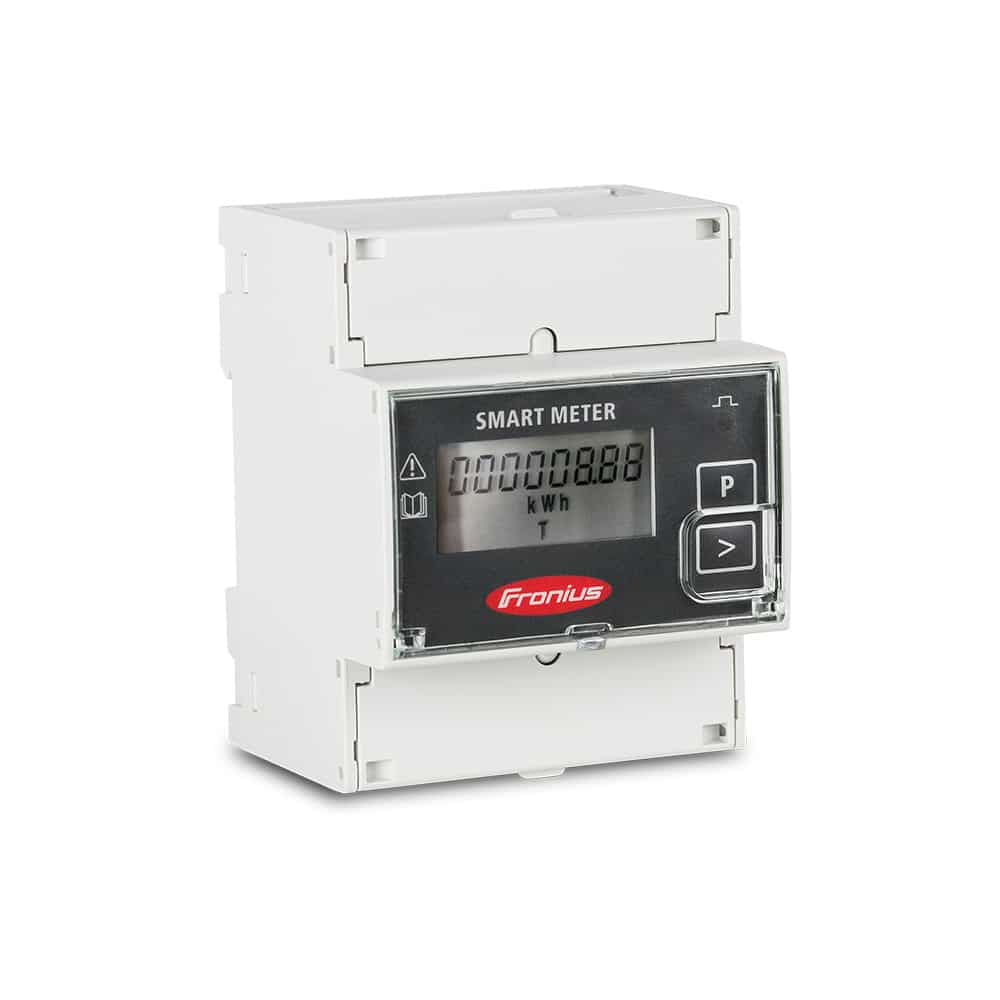

FRONIUS Smart Meter 3 Phase 63A (63A-3)

Call for price

  • Bidirectional Smart meter
  • 63A/400-415V
  • Three Phase
Categories: ,

Description

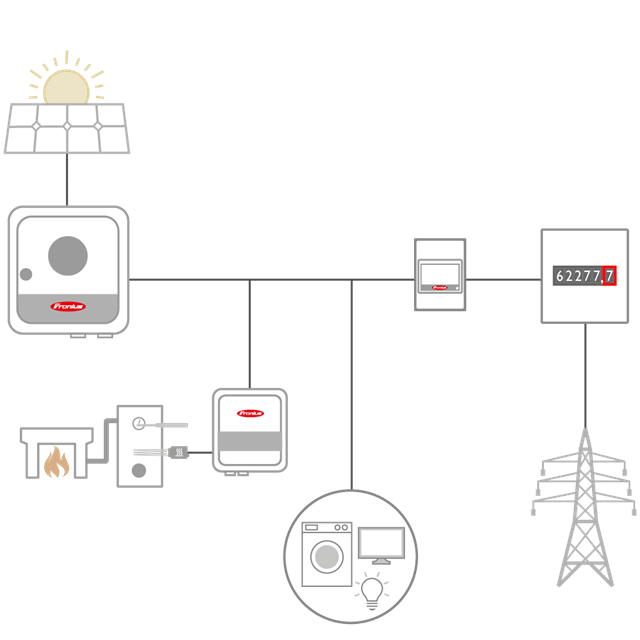

The Fronius Smart Meter is a bidirectional meter which optimises self-consumption and records the household’s load curve. Thanks to highly accurate measurements and rapid communication via the Modbus RTU interface, dynamic feed-in control when feed-in limits are imposed is faster and more accurate than with the S0. Together with Fronius Solar.web. The Fronius Smart Meter presents a clear overview of power consumption within the home. In the Fronius Energy Package storage solution based on the Fronius Symo Hybrid. The Fronius Smart Meter provides perfectly coordinated management of the various energy flows and optimises overall energy management. It is ideally suited for use with the Fronius Symo, Fronius Symo Hybrid, Fronius Galvo inverters and the Fronius Datamanager 2.0.

Fronius

Additional information

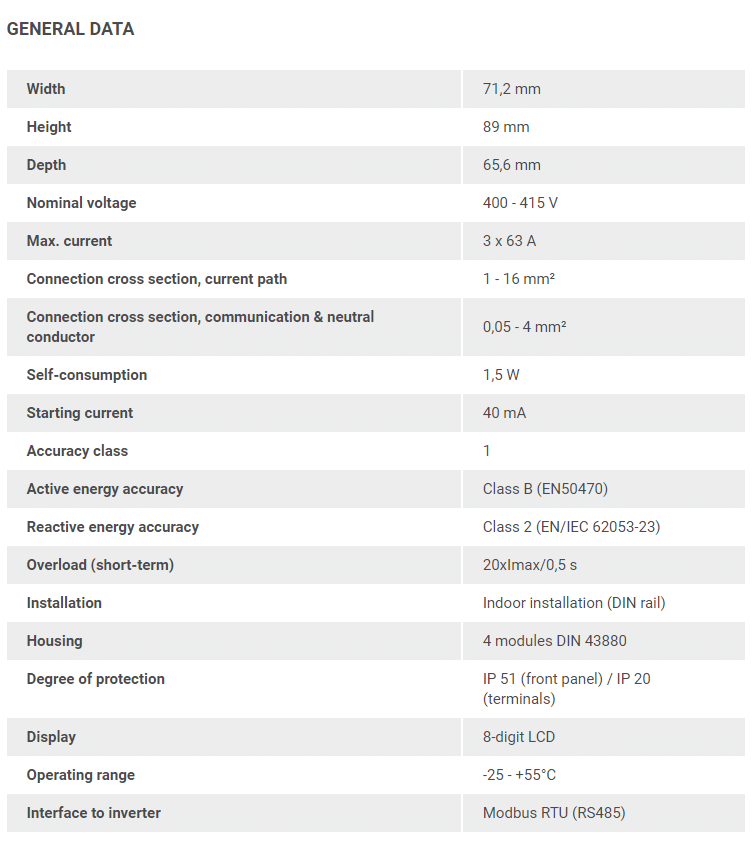

Dimensions 7.2 × 9 × 6.5 cm
