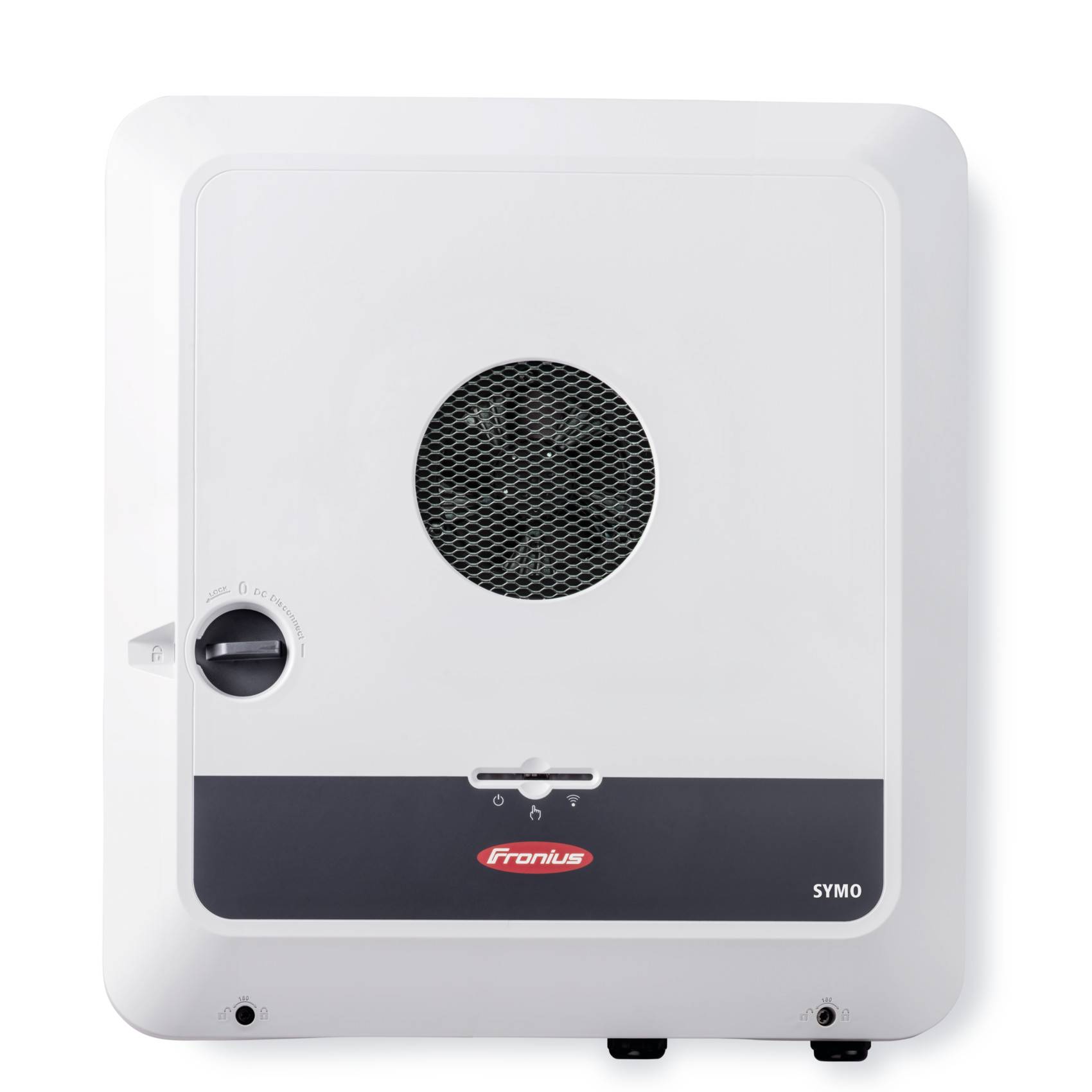

Fronius GEN24 Plus

The Fronius GEN24 hybrid inverter with integrated backup power function.

The Fronius GEN24 Plus is the all-in-one solution for solar energy supply. Whether it be used for solar PV, energy storage, back-up power, heating, or EV charging, the Fronius GEN24 Plus is the ideal hybrid inverter for Australian households.

The GEN24 hybrid inverters have power categories between 6 and 10 kW for the Symo (3 phase) and 3 – 6 kW for the Primo (single phase) with many features built in as standard.

Due to the PV Point feature – an integrated socket supplied with electricity when backup power is needed – and the option of Full Backup functionality in the event of power outages, it ensures the highest degree of power supply reliability.

Fronius GEN24 Primo and Gen24 Symo Hybrid Inverters

BASIC GRID BACKUP POWER FUNCTION ON BOARD
The PV Point, a free basic grid backup is integrated in the GEN24 Plus as standard.
The option for full backup power functionality offers maximum independence.

MAXIMUM SELF-CONSUMPTION AND SELF-SUPPLY
Integrated energy management functions and open interfaces enable a maximum rate of self-consumption and self-supply for e-mobility and hot water.

HYBRID INVERTER WITH MULTI FLOW TECHNOLOGY
The integrated Multi Flow Technology not only enables simultaneous energy flows in all directions, but also the AC, DC and AC & DC coupling of the battery storage system. This results in a high self-consumption rate and system flexibility.

COST SAVINGS
A number of integrated features including back-up power, system and energy analysis tool, integrated Dynamic Peak Manager, energy management function, and SuperFlex Design, eliminate unnecessary additional costs.

Fronius GEN24 Plus

Fronius GEN24 Hybrid Inverter – The all-in-one solution

Tried-and-tested features  – complemented by smart innovations

  • PV Point – Integrated basic backup power function
  • Energy Management – 4 digital I/Os to increase self-consumption
  • Multi Flow Technology – Parallel energy flows, even when using grid backup
  • Dynamic Peak Manager – Maximum yields even in the case of partial shading
  • SuperFlex Design – Enables maximum flexibility in system design
  • Open interfaces – Easy integration of third party-systems
  • Active Cooling Technology – Long service life for the inverter
  • Upgrades possible at any time – Open interfaces make it easy to integrate third-party components such as home automation systems.
  • Smart monitoring with Solar.web – Monitor and analyse your PV system quickly and conveniently on your smartphone, tablet or laptop. System data and optimisation potential visible at all times

Fronius Gen24 Hybrid Storage Solution

Maximise energy independence with custom backup power options.

Full Backup

With the Full backup option, the entire home can be supplied with electricity in the event of a power outage.

  • Supplies backup power to the entire household
  • Automatic changeover in the event of grid failure
  • Efficient energy flows due to Multi Flow Technology, even in backup power situations

PV Point

The integrated basic backup power function (PV Point), is a
socket supplied with power in the event of a grid blackout.

  • Automatic activation in the event of a grid outage
  • No additional costly installation work is necessary
  • Supplies single-phase household loads up to 3 kW

BYD Battery-Box Premium HVS/HVM

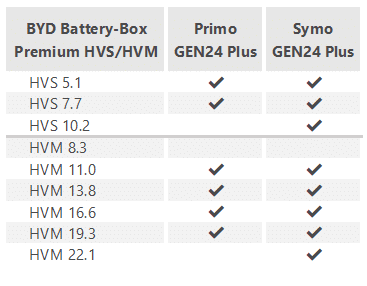

The HV versions of BYD Battery-Box Premium (HVS & HVM) are compatible with Fronius GEN24 Plus Hybrid Inverters.

The capacities of the combinable batteries range from 5.1–10.2 kWh (HVS) and 8.3–22.1 kWh (HVM).
Because the BYD batteries have a modular structure and can be expanded in steps of 2.6 kWh (HVS) or 2.8 kWh (HVM), this means that storage capacity can be easily upgraded at a later date.

By combining the BYD Battery with other sectors such as heat supply or vehicle charging, it is possible to achieve very high self-consumption rates and self-sufficiency levels, resulting in maximum energy independence in the home.

The Battery-Box Premium HVS/HVM is based on lithium iron phosphate (LiFePO4) – one of the most reliable storage technologies.

Premium HVS

Modular
2 – 4 modules
5.12 – 10.24 kWh

Retrofittable
2.6 kWh steps

Premium HVM

Modular
4 – 8 modules
11.04 – 22.08 kWh

Retrofittable
2.8 kWh steps

Fronius GEN24 Plus: Uniquely Versatile

Fronius GEN24 Plus: A True All-rounder

Downloads

Brochure: Fronius GEN24 Plus

Brochure: GEN24 Storage Solution

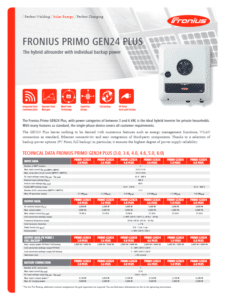

Datasheet: Primo GEN24 Plus

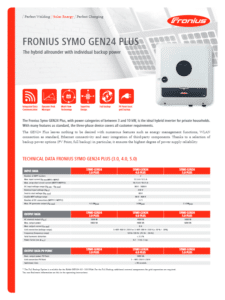

Datasheet: Symo GEN24 Plus

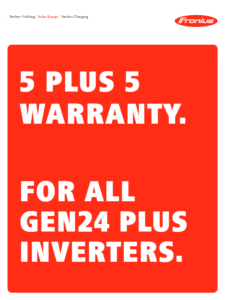

Warranty: 5 Plus 5
