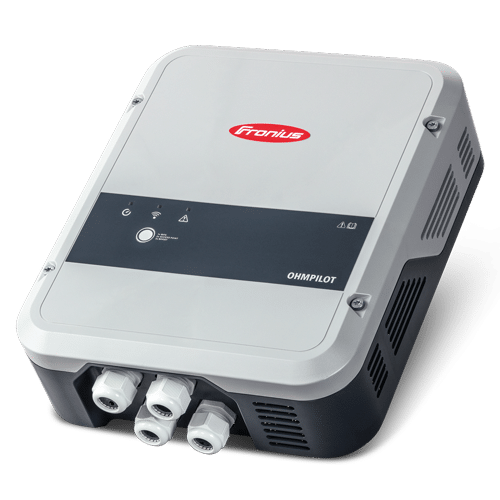

Fronius Ohmpilot

Call for price

  • Continuously adjustable regulation from 0 to 9 kW
  • Easy installation
  • Minimum temperature setting
  • Dynamic feed-in limitation ≥ 50% – also with Fronius Energy Package
  • Coordination with other heat sources, e.g. gas water heaters
  • Combination with heat pumps
  • Legionella prevention system
  • Proven compliance with EMV directives


The Fronius Ohmpilot is a consumption regulator designed to use excess solar power to heat water. Thanks to the continuously
adjustable regulation from 0 to 9 kW, surplus PV current can be put to highly efficient use and fed to the consumers in the
The Fronius Ohmpilot is primarily used to intelligently control heating elements for providing hot water in boilers and buffer
storage tanks, but can also be used for infrared heating or towel radiators. Solar power can thus provide a family home with
average levels of water consumption with most of their hot water from September to March. The result is maximum self-consumption, a reduction in the household’s CO2 emissions and less wear on the building’s main heating system during the
summer months.

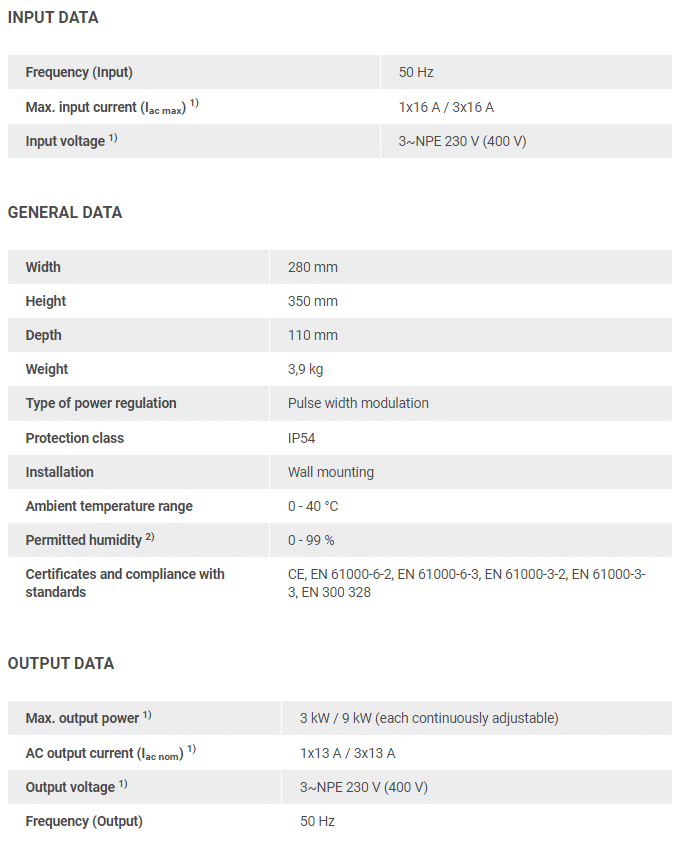

Additional information

Weight 3.9 kg
Dimensions 28 × 11 × 35 cm
