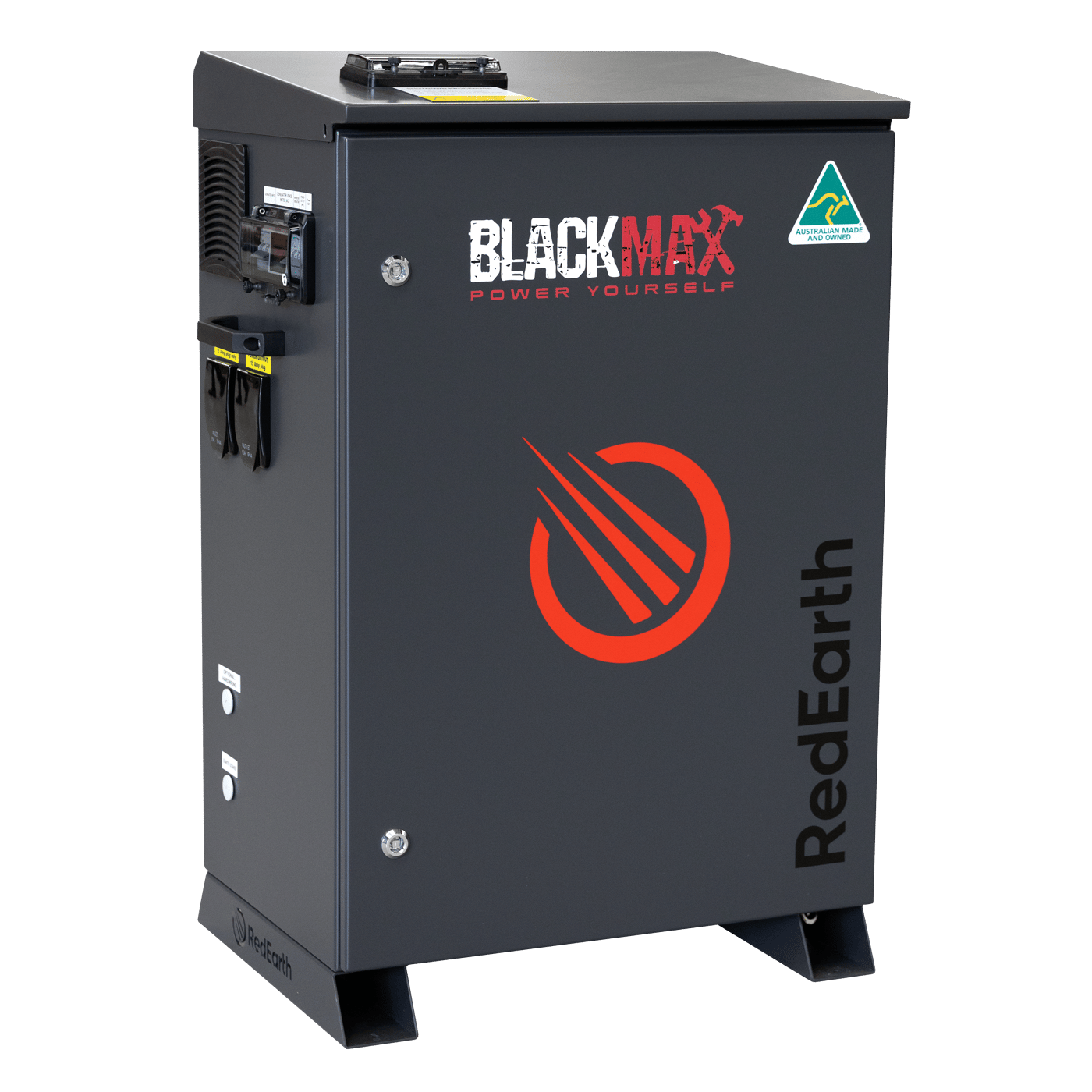

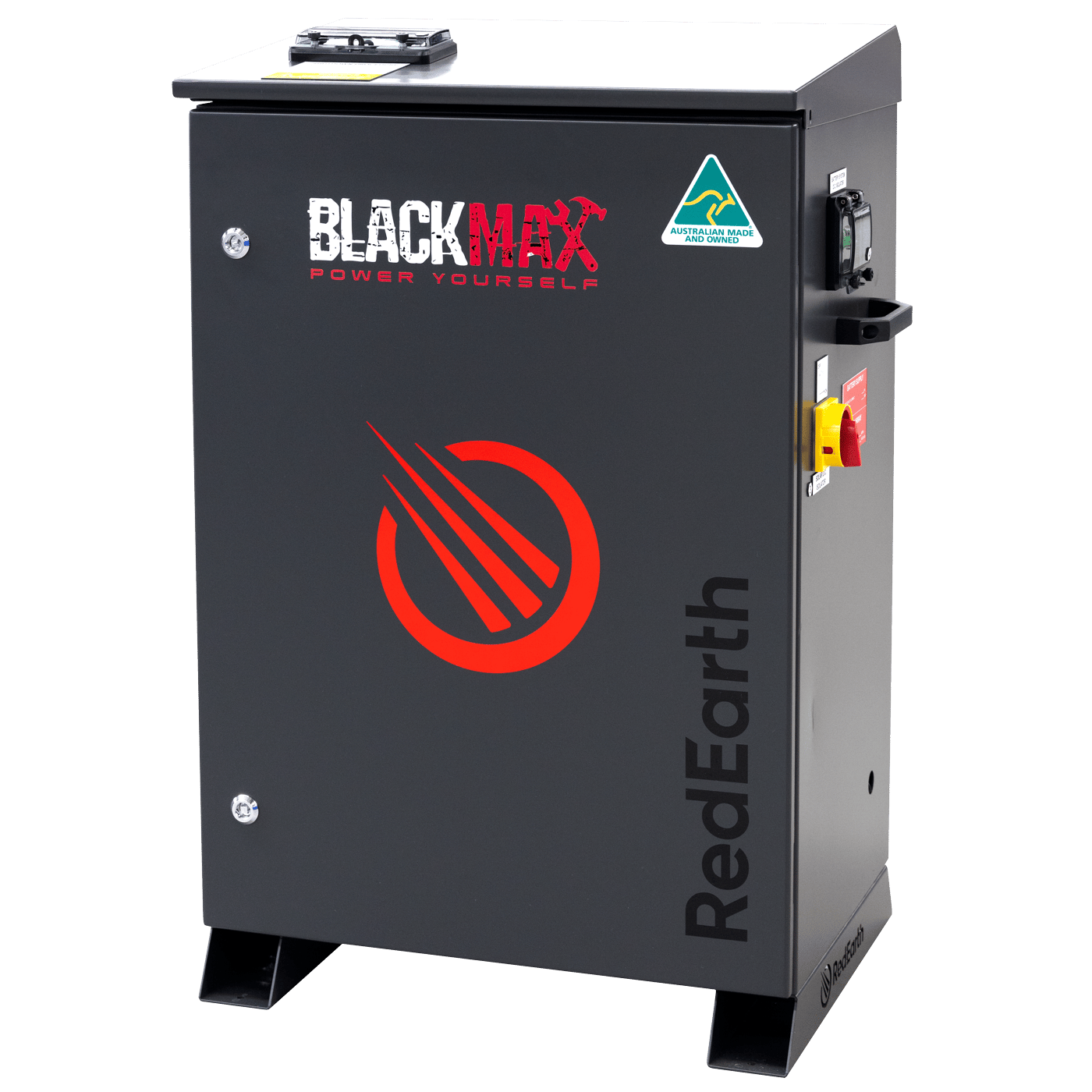

BlackMax – 12.3 kWh

Call for price

AC Power Output:
5000W peak
10,000VA surge

Battery Storage Capacity:
12.3 kWh

Description

Red Earth Energy Storage

A small, standalone off-grid power system.
BlackMax offers up to 12.3kWh of storage and 5kW power output and backup generator capability.

Solar Input:
Connect up to 5kW of solar panels to the MPPT (max. 450VDC 22 A single input VDC/22A)

Power Output:
5000W peak, 10,000VA surge

Battery Options:
4.1kWh | 8.2kWh | 12.3kWh

Dimensions:
1020H x 750W x 500D (mm)

Weight:
50kg + 42.5kg per battery

Battery Voltage:
48VDC nom.

Electrical Connection:
• I5A AC output plug (<3.5kW)
• I5A AC input plug (for generator), optional hardwire and auto-start
• Option to hard-wire to internal terminal block

Monitoring:
• Optional remote monitoring on mobile devices and PC (subject to network availability)
• Moveable display (Cat6 max 20m)
